PRESIDIO COMPONENTS INC. maintains more than 100 million standard commercial and military parts in inventory. If you need a custom product, call our engineering team. Backed with numerous patents and hundreds of years of combined experience, Presidio’s engineering team is ready and able to create the ideal solution for any application.
THE PRESIDIO ADVANTAGE:
• Low ESR, High Q
• Q = 10,000 at 1 MHz
• 100% Made in the U.S.A.
• For Use Up to Ku-Band
• Suitable for Military and Space
• Matching Oscillator Design
• Designs from DC to Ku-Band
• Superior Mechanical Strength
View Our Certifications

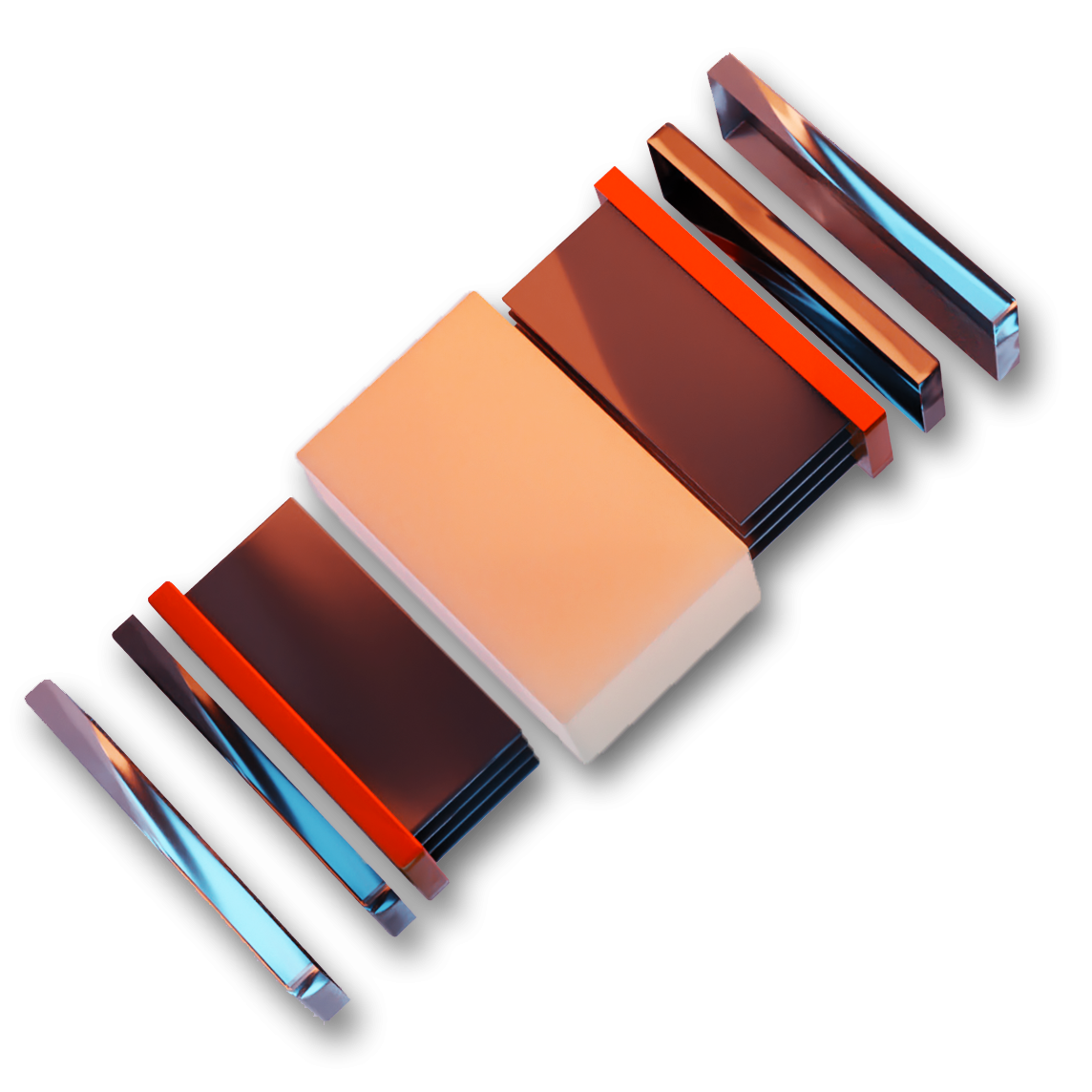

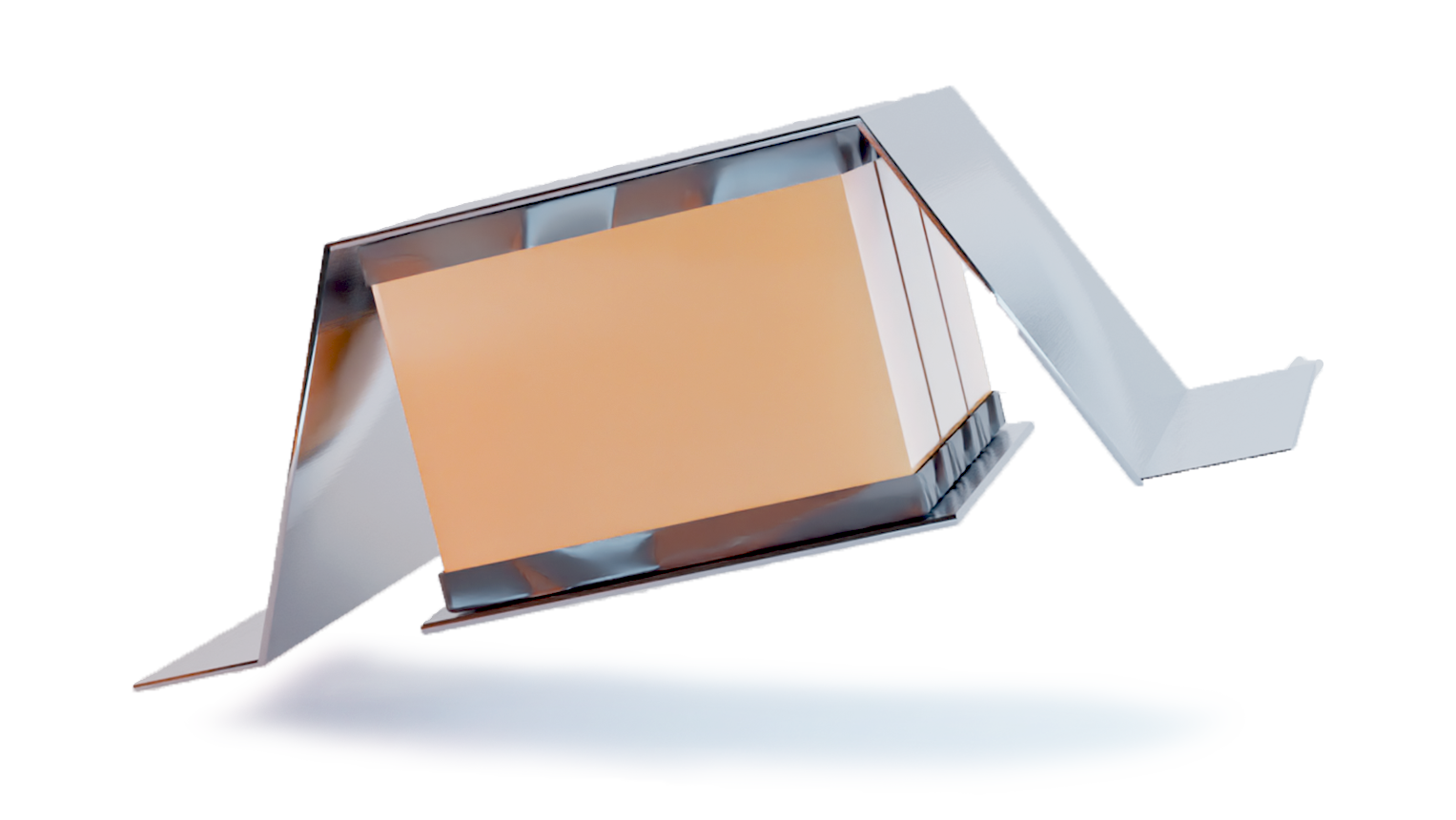

Presidio Components Inc, Exploded view of NPO Ceramic Capacitor

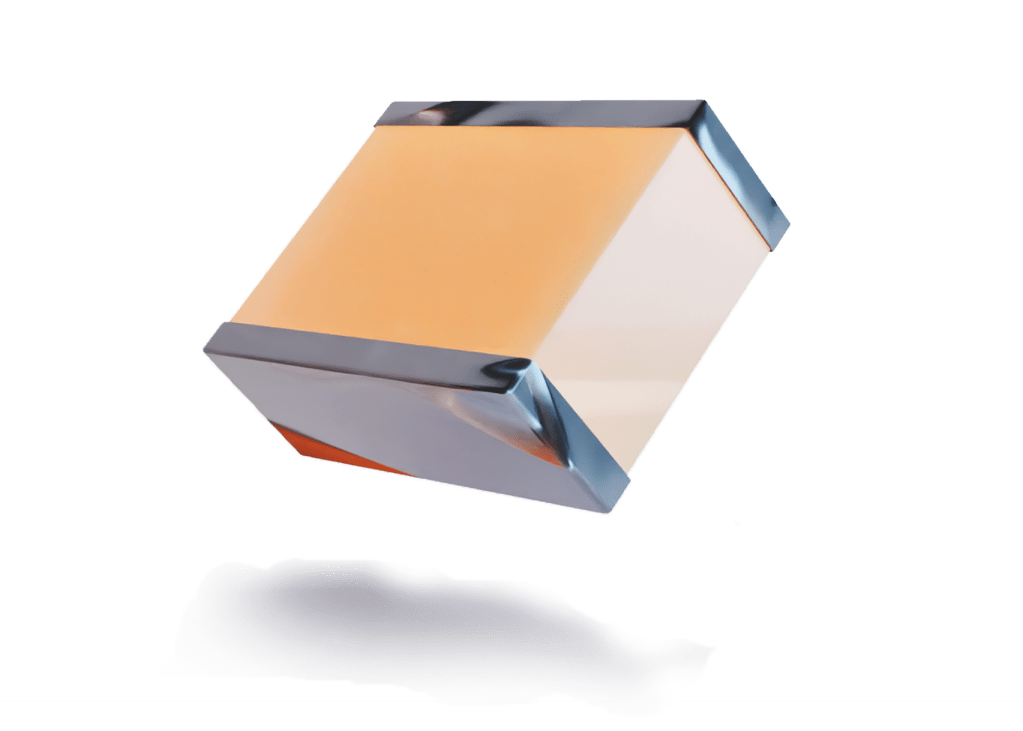

Filter Capacitors: A filter design requires a specific capacitance value, cF, and at the upper end of the filter response, fF, the effective capacity must not exceed cF by more than a specified amount of delta C. Once cF is determined, case size, voltage rating, and temperature characteristics can be selected.
DC Block and RF Bypass: The bandwidth over which the insertion loss meets specification is determined by the location of parallel resonances. Minimum insertion loss at the band center is achieved by choosing a capacitor whose lowest series resonance is approximately at this frequency. Low impedance is typically more important than the capacitance value.
Low Noise Applications: Dissipation loss is the consideration. ESR is very small at the series resonance, very large at the parallel resonance. The neighboring parallel resonances determine the bandwidth.
